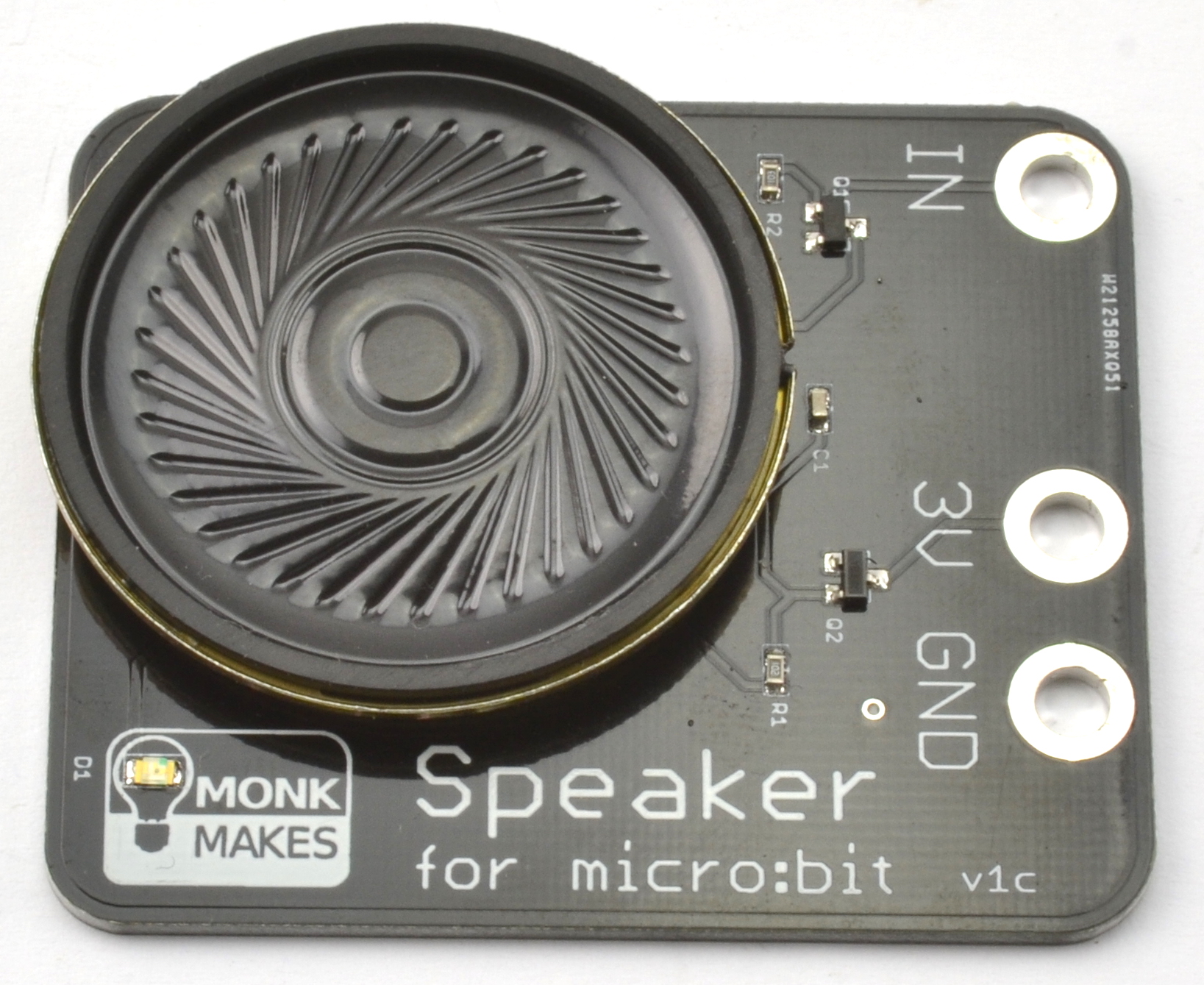

The MonkMakes Speaker for micro:bit is a neat little amplified speaker that connects to your micro:bit using alligator clips. Despite its small size, this speaker is pretty loud.
- Amplified output
- LED ‘power on’ indicator
- Reverse polarity protection
Connecting to your micro:bit

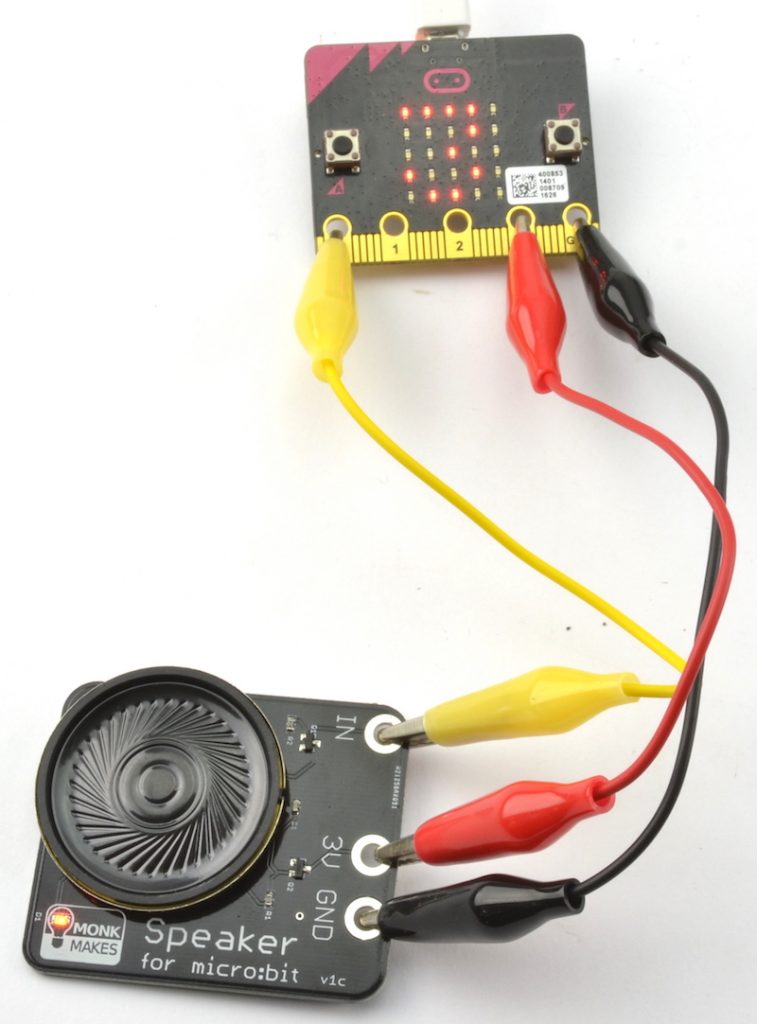

Connect the Speaker to the micro:bit as shown below. When attaching the alligator clips to the micro:bit, make sure that the clips are perpendicular to the board so that they are not touching any of the neighbouring connectors on the micro:bit edge connector.
The quickest way to try out your speaker is to DOWNLOAD THIS HEX FILE and then copy it onto your micro:bit. Press Button A to hear a tune being played.
Visit the Blocks Editor in your browser and then from the input section add an on button A pressed block then from the music section add a start melody block and select the tune you want to play (in this case, entertainer).
Click Download and then copy the file onto your micro:bit.
You can also open the project in the Blocks Editor by clicking on the image below.
You can also make a simple musical instrument, using this tutorial: https://makecode.microbit.org/projects/hack-your-headphones/code
Paste the following code into the Python window and then Download the file and copy it onto your your micro:bit
from microbit import * import music while True: if button_a.was_pressed(): music.play(music.ENTERTAINER)
When you press button A you will hear the tune “The Entertainer” play through the speaker.
As well as this board, we also have a Relay for micro:bit and a Sensor for micro:bit. We also have an Electronics Starter Kit for micro:bit that includes all three boards, a project booklet and other useful components to build yourself some great micro:bit projects.
